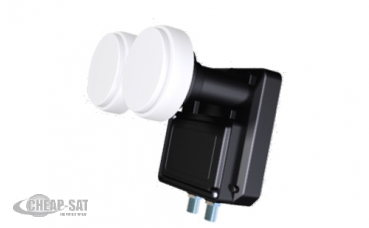

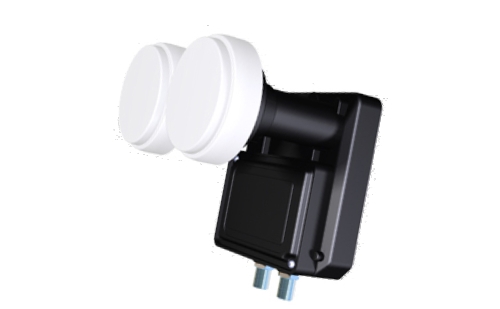

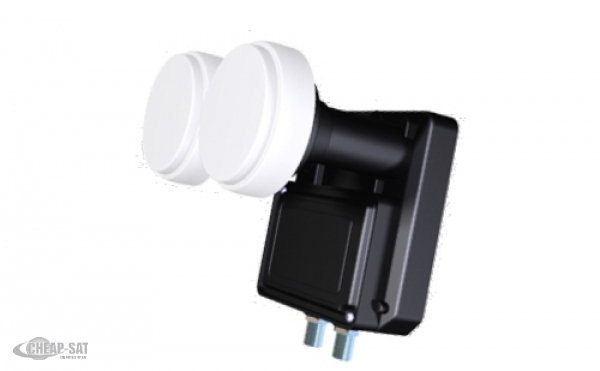

Inverto Monoblock Twin 23mm LNB,6°

Art.Nr.:
001187
ca. 3-4 Tage ca. 3-4 Tage (Ausland abweichend)
44,90 EUR

inkl. 19% MwSt. zzgl. Versand

Auf den Merkzettel
Frage zum Produkt
Beschreibung

Low Band Input Frequency Range 10.7 ~ 11.7 GHz
Low Band Output Frequency Range 950 ~ 1950 MHz
Low Band LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7 ~ 12.75 GHz
High Band Output Frequency Range 1100 ~ 2150 MHz
High Band LO Frequency 10.6 GHz
Noise Figure 0.2 dB Typ. (0.7 dB Max.)
LO Initial Accuracy +/- 1.0 MHz Max.
LO Temperature Drift +/- 3.0 MHz Max.
Phase Noise (@ 10 kHz) - 90 dBc / Hz Max.
Conversion Gain 50 ~ 65 dB
Gain Ripple (Over 26 MHz Bandwidth) +/- 0.75 dB
Gain Variation (Over Full Band)  +/- 4 dB Max.
Image Rejection 40 dB Min.
1 dB Compression Point (@ Output) 0.0 dBm Min.
Control: Satellite A/B Selection DiSEqC 1.0 (Sat A* = Hotbird 13° East,  Sat B = ASTRA 19.2° East)
Cross Polarization Isolation 22 dB Min.
Output VSWR 2.5 : 1
In-Band Spurious - 60 dBm Max.
Current Consumption 150 mA Max. @ 11 ~ 20 V
Operating Temperature - 30 °C  ~  + 60 °C
Output Impedance 75 Ω
Output Connector F-Type (Female)
Weight 435 g
Recommended Dish Size 75 ~ 85 cm (F/D = 0.6)
Monoblock Mounting Bracket 23 mm
